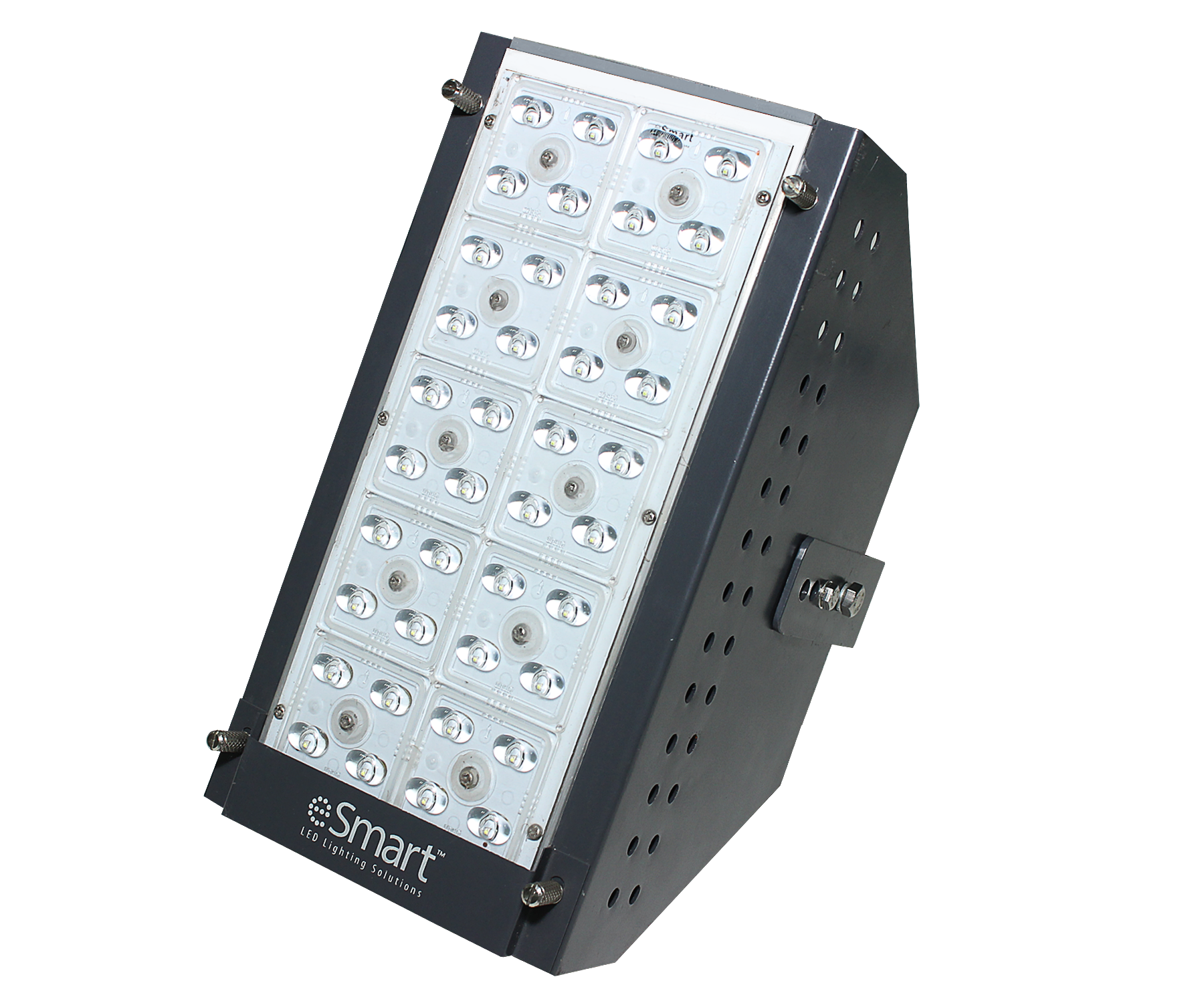

LED Bay Light

  • Home
  • LED Bay Light

Features

  • High efficient thermal design for better heat dissipartion and longer product life
  • Secondary optical lens for desired glare free light distribution
  • Isolated IP66 high efficiency driver.
  • Extruded Aluminium housing
  • Wide beam angle
  • High Luminaire efficiency
  • Wide operating voltage range
  • High PF & Low THD
  • Dimmable through smart controller
  • Maintenance Free design

Applications

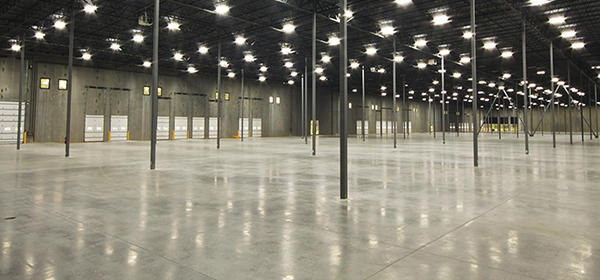

  • Warehouses
  • Indoor Stadium
  • Manufacturing Industries

Product Range UOM 50W / 75W / 100W / 125W
Operating Voltage Range Volts 150 - 280 Vac
Operating Temp. Range °C 10 to 45
Relative Humidity % 0 to 90
CRI >70
CCT K 3000 to 6500K
System Power Factor >0.95
ATHD % <10
Uniformity >_ 0.4
System Efficacy >_ 110 lm.w
Housing Material Alu. Extruded
Secondary Optics PMMA Lens
Product dimension mm TBD
